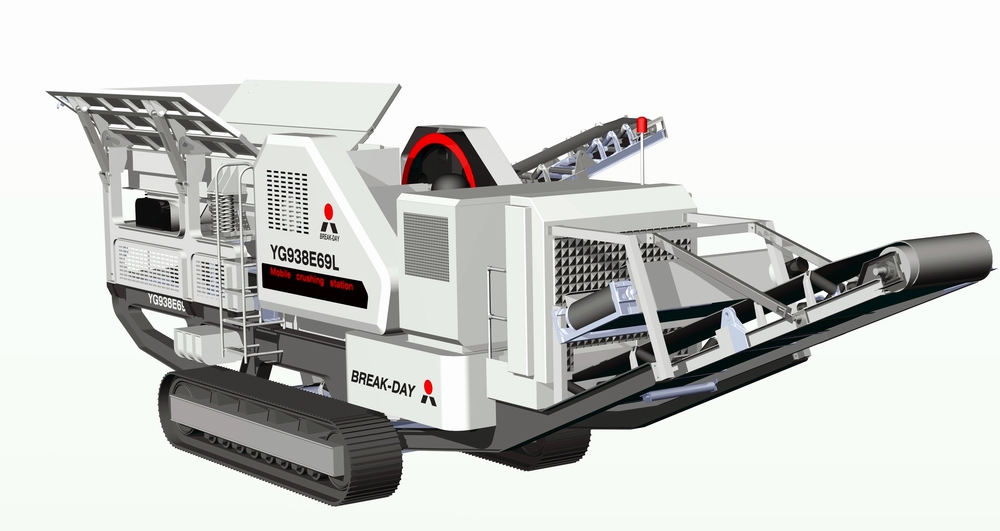

Tracked -Mounted mobile crusher

Tracked -Mounted mobile crusher

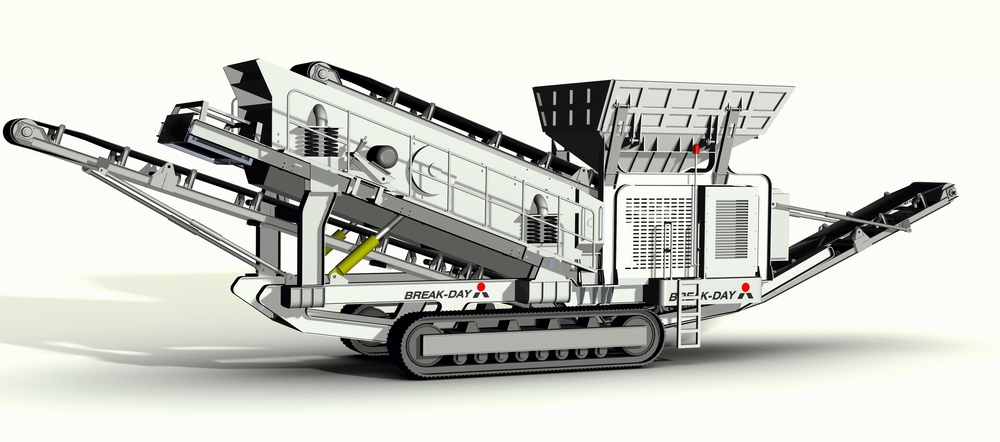

Crawler type mobile crushing and screening plant is researched and designed by our experienced engineers. It is of stable performance and beautiful structure. It is widely used in road &bridge construction, building, mining and other fields.

1. Excellent performance of power system. It is adopts Cummins diesel engine, low oil consumption, low noise. And we can equip a low-temperature preheating device sol that the equipment is able to start at -25oC low temperature environment.
2. Ship-shaped steel chassis. It is of high intensity, low on ground pressure etc. And it is easy to be transported on different terrains like mountain and marsh.
3. High-torque moving motor. It is of strong driving force and perfect performance, thus providing reliable power source to the running system.
4. Servo -system. It is of easy operation and precise control, and can realize Continuously Variable Transmission.
5. Efficient and mature crushing and screening equipment. The crushing and screening plant uses our company’s advanced products so that ensure the good quality of complete set of equipment.
6. Both electricity and diesel oil power device with intelligent dual power switch. The machine can be operated by local electric power. Thus the operating cost will be cut down and the emission of CO2 and nitrogen oxides is highly reduced. When there is electricity breakdown and under voltage, the diesel oil power device will be started to work to guarantee the continuous operation of the machine.

Specifications:
Technical Data\Model YG935E69L YG935FW1214ⅡL YG1138E71L YG1138FW315ⅡL YG1138EW86L
Vibrating Feeder GZD-960×3500 GZD-960×3500 GZD-1100×3800 GZD-1100×3800 GZD-1100×3800
Crusher PE600×900 PFW-1214Ⅱ PE750×1060 PFW-1315Ⅱ PEW860
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9M B1000×9M B1000×9M
Discharging Height of Main Belt Conveyor (mm) 3200 3200 3500 3500 3500
Side-opening Belt Conveyor (Optional) B450×3M B450×3.2M B500×3.5M B500×3.5M B500×3.5M
Discharging Height of Side-opening Belt Conveyor (mm) 2800 2800 3100 3000 3100
Power of Genset (kW) 180 250 200 300 250
Transportation Length (mm) 11900 11900 13300 13300 14200
Transportation Width (mm) 3100 3100 3100 3100 3300
Transportation Height (mm) 3650 3650 4500 4500 5000
Transportation Weight (t) 43.5 50 59 59 67
Working Length (mm) 12100 12100 13500 13500 15200
Working Width (mm) 3100 3100 3100 3100 3300
Working Height (mm) 4100 4100 5100 4800 5500
