Super pressure trapezium grinding mill

Super pressure trapezium grinding mill

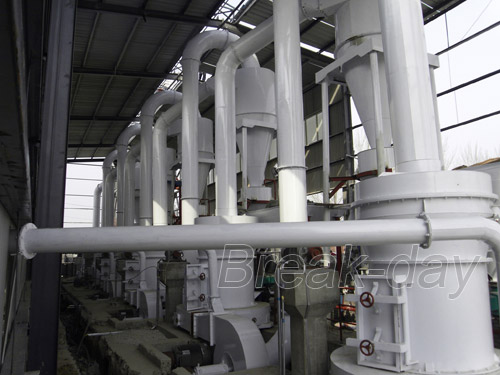

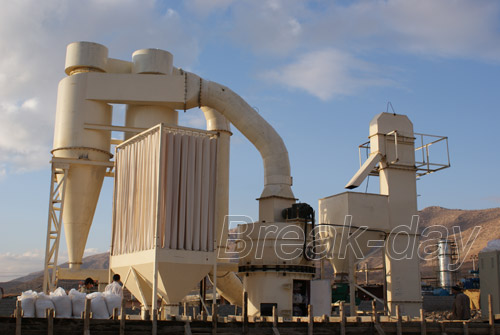

Super Pressure Trapezium Mill is the latest grinding mill. It is researched and designed by our experts basing on long term experiences of mill research and development, and according to numbers of customers’ using requirements and suggestions home and aboard. The TGM Series Super Pressure Trapezium Mill adopts our patented technologies, like trapezium working surface, flexible connection, roller linked pressure boost, etc. TGM Series Super Pressure Trapezium Mill has reached the advanced international level of powder making equipment manufacturing.Super Pressure Trapezium Mill mainly consists of mainframe, speed reducer, powder separator, blower, bag filter, pipes, powder collector, motor, etc. The peripheral equipments are jaw crusher, bucket elevator, feeder, hopper, electric control panel, etc. It can grind all kinds of non-flammable and non-explosive minerals with Moh’s hardness lower than 9 and humidity less than 6%,Super Pressure Trapezium Mill is widely used in metallurgy, manufacture of building materials, chemical industry, mining industry, etc.

Features:

The diameters of each part of rollers and rings are different, the upper part is big and the lower part is small, then they formed a trapezium form. This form can reduce materials’ sliding speed downwards and prolong the grinding time for materials, thus the grinding efficiency is increased; the pressing springs have the functions of balancing and pressure increasing; the flexible connection can make the mill stable, decrease the shocking and avoid sympathetic vibration; high density powder separator impeller decreases the air resistance and increases powder collecting fineness and capacity; the efficiency of energy saving and high efficient centrifugal blower is as high as 83%.

Specifications:

Item\Model TGM100 TGM130 TGM160
Roller piece 4 5 6
Roller Diameter×Height(mm) Ф320×200 Ф400×240 Ф440×270
Ring Inner Diameter×Height(mm) Ф980×200 Ф1280×240 Ф1600×270
Speed Of Main frame (r/min) 1480 1480 1480
Max. Input Size (mm) 25 30 35
Product Size (mm) 1.6~0.045 fineness can reach to 0.038 1.6~0.045 fineness can reach to 0.038 1.6~0.045 fineness can reach to 0.038
Capacity (t/h) 3~8.8 6~13 13~22
Overall Dimension (mm) 7300×5365×8310 9200×7000×9645 12550×5700×8355
Weight (t) 16 26.1 35
Name Item Unit Specifications & Technical Data
TGM100 TGM130 TGM160
Motor for main frame Model Y225S-4 Y280S-4 Y315M1-4
Power kW 37 75 132
Rev. rpm 1480 1480 1480
Motor for separator Model YCT200-4A YCT200-4B YCT205-4A
Power kW 5.5 7.5 18.5
Rev rpm 125~1250 125~1250 125~1250
Motor for Elevator Model Y100L-4 Y100L-4 Y112M-4
Power kW 3 3 4
Rev rpm 1420 1420 1420
Motor for Blower Model Y225S-4 Y280S-4 Y315M1-4
Power kW 37 75 132
REV rpm 1480 1480 1480
Motor for Jaw Crusher Model PE 250×400 250×400 250×100
Y180L-6 Y180L-6 Y200M-6
Power KW 15 15 30
REV rpm 970 970 970
Electro-Magnetic Vibrating Feeder Model GZ2F GZ2F GZ3F
Power W 150 150 200

Note: The final technical data are subject to the operation manual along with the machine.
