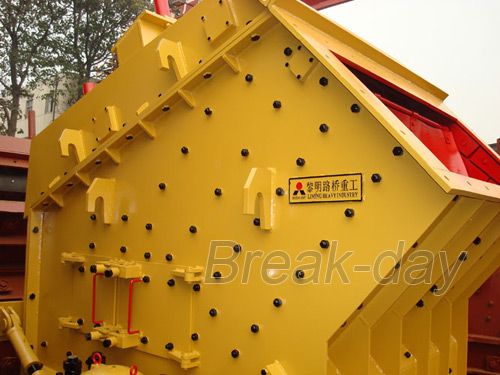

PF Series Impact Crusher

PF Series Impact Crusher

PF Series Impact Crusher

 PF Series Impact Crusher

PF Series Impact Crusher ‘s Intruduction:

Impact Crusher can crush many kinds of materials with max feed size less than 500mm and crushing strength less than 360 MP. The most outstanding advantage of impact crusher is that its finished powder is in good, cubic shape, non-tensile and cranny. It is is widely applied in mining, transportation, energy, construction and chemical industry.

PF Series Impact Crusher ‘s Overview:

PF Series Impact crusher is the latest product researched by our company by absorbing advanced technology at home and aboard and combining specific industry and mining condition in domestic sand and stone industry. The discharging size of our PF series impact crusher is adjustable and the crushing specification is diversified. Users can adjust the gap between hammer head and impact plate and matching parts as needed to get perfect outputting size.

PF Series Impact Crusher ‘s Highlights:

(1) Big feed hole, high crushing chamber, applicable to crushing bulk materials of high hardness and less powder products.
(2) Gap between impact plate and flat hammer can be conveniently adjusted to effectively control outputting size. Finished product is cubic and in good shape.
(3) Compact structure, strong rigidity of machine, rotor has big inertia moment.
(4) High chromium flat hammer, impact resistant, wear resistant, small mechanical wear, huge impact force.
(5) Adoption of new rotor increases impact force.
(6) Complete crushing function, high reduction ratio, high productivity, low energy consumption and high comprehensive benefit.
(7) Non-key connection, simple structure, convenient maintenance, economical, reliable.

PF Series Impact Crusher ‘s Working principle:

Impact crusher crushes material by striking energy. When it works, the motor drives the rotor rotate at a high speed, on which the blow bar is installed. As soon as the material get into the affecting area of the blow bar, they will be stroke by the blow bar and be thrown to the impact devices around the rotor. The high speed forces the material to rebound from the impact liner to the area where the blow bar effects until they have been crushed to the required size. The clearance between the impact racks and the rotor can be adjusted to change the size and shape of the end products.

PF Series Impact Crusher ‘s specifications:

Model Size of rotor (mm) Feed opening (mm) Max. feed size (mm) Capacity (t/h) Power of Motor (kW) Weight (t) Overall Dimensions (mm)
PF1010 Φ1040×1000 510×1040 200 50-90 75 12.5 2455×2090×2800
PF1210 Φ1260×1050 465×1155 250 70-130 110 16.5 2582×2410×2810
PF1214 Φ1260×1400 465×1485 300 90-180 132 19 2582×2052×2810
PF1315 Φ1280×1500 700×1540 300 120-250 200 24 2930×2765×3053
