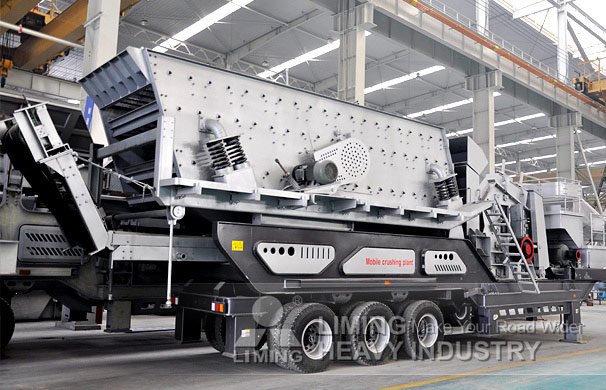

Mobile Crushing and Screening’s Overview:

Mobile Crushing and Screening is a new designed rock crushing & screening plant, which is flexible, convenient and strong in mobility, so it can save a large construction capital and relocation. Raw Materials can be broken at the local place without being transported again, and also can be moved with the further exploitation of the raw material, which saves a large number of transportation cost. Liming corporation specializes in producing crusher, screen, transportation, other rock breaking, and mineral processing equipment. On the basis of professional technology, we optimize and introduce two large and three small series of crushing and screening equipment. Each large series is divided into three series: rough, medium and fine crushing and screening mobile plant. Therefore, it can fully adapt to the various mobile crushing and screening spots, and creates more new business opportunities for customers while reducing cost of production.

 Mobile Crushing and Screening’s Features:

1. World-level manufacturing technology is adopted, and highest-level raw material is used.

2. Central lubricating device are installed on the machine, so the bearing is easy to be lubricated.

3. Adjustment of the discharge part is more convenient.
The adjustment methods: gasket adjustment, hydraulic assistant adjustment, wedge block and wedge hydraulic adjustment.

4. More advanced movable jaw assembly lengthens life of crusher.
Movable jaw assembly is made from cast piece with high-quality, is driven by two large flying wheels which are made from cast steel. Moreover, heavy eccentric shaft is processed by forged mold. All of these make the JC series jaw crusher extremely reliable.

5. Integral cast steel structure is adopted for bearing seat. Integral cast steel bearing matches well with the crusher frame, at the same time, radial strength of the bearing seat is highly strengthened. However, the separate bearing seat does not have this advantage.

6. Finite element analysis technology is adopted to make the crusher much stronger.

7. Crusher chamber adopts “V” structure which could make actual feed width comply with the nominal one.

8. Bearing with larger model and higher load are used. All JC jaw crusher is equipped with larger bearing compared with same model of normal jaw crusher. Its higher load capacity and effective oil seal will lengthen the life of bearing.

9. A newly designed tooth-shape side plate, makes the available area of jaw plate longer, and enhances the capacity.

10. Pressing bar and support type are used to fix jaw plate.

11. Heavy type protecting plate is intalled for bearing seat, accidental damage of bearing seat is avoided.

12. Supporting bar under jaw plate protects movable jaw and frame from being worn down.

Mobile Crushing and Screening’s Highlights:

(1) Equipments Integration: Complete set of equipment, rational and compact combination, maximally saving the working area.

(2) High maneuverability. Small turning radius makes it convenient for driving on the ordinary road, and also easily for moving in and out of the mining area. Besides, it can be transferred to another working area anytime as needed, thus, eliminating the drawbacks compared with fixed crushing plant on dismounting, transporting and installation.

(3)Saving transportation cost of raw material: The mobile crushing plant can enter the mining area to work directly so that save the cost of the raw material being transported away from the mining area.

(4) Flexible configuration. According to different requirements of customers, we are providing a targeted mobile crushing plant configuration. It can operate with one single crushing station, and also can work with multiple crushing plants. That is can either crushing with one single plant and also composes multiply-stage crushing, screening and other plants work jointly.

(5) Independent power generation system. The mobile crushing plant can equip a generator accordingly so that can work normally in the non-power supply’s remote border district.

(6) Reliable quality and stable performance: With more than 20 years’ crushing equipments manufacture experience, facile, nimble, reasonable mobile frame, strict debugging before leaving the factory, ensuring every mobile crushing plant operate stably with reliable performance.

Mobile Crushing and Screening’s Working principle:

The mobile crushing and screening plants is composed of primary crushing and screening station and secondary one, belt conveyor, etc. Every crushing station is an independent working unit, they can respectively assume their different responsibility, and the belt conveyer is responsible for material transmitting and piling up between each crushing station.

Mobile Crushing and Screening’s specifications:
