Processing of materials: granite
Production capacity: 200t / h
Feed size: 500mm
The particle size: 0-5mm, 5-15mm, 15-25mm
Device Configuration: K series jaw crusher, hydraulic cone crusher,

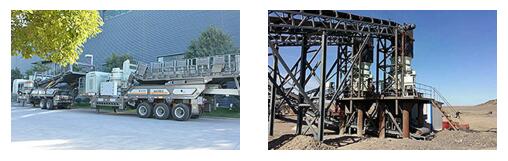

Mobile crushing equipment is widely used in the construction industry, granite crushing industry for production and product size requirements are very high, and our engineers according to customer demand for customers to configure a KE750-1, KH300-2 two mobile stations.
When chunks of stone into the hopper, through TSW1139 feeder into the PE750 × 1060 jaw crusher for primary crushing, and then by the belt conveyor will be broken after the beginning of the stone into the HPT300 (C) cone crusher for secondary crushing, after the secondary crusher by the belt conveyor to transport the stone 3YZS2160 vibrating screen for screening, after the screening, particle size of 0-5mm, 5-15mm, 15-25mm stone by belt conveyor output as the finished material, greater than 25mm stone directly into the cone crusher crushing again.
