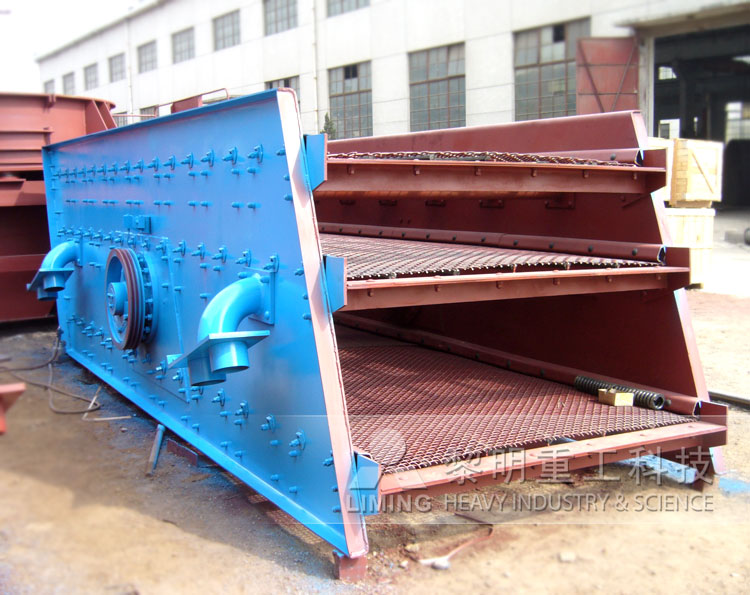

 Circular Vibrating Screen’S introduction:

The circular vibrating screen is a high-efficiency and new-type vibrating screen featured by circular vibration and multi-layers. This type of vibrating screen is specially designed for screening material stone of a quarry, and widely used for product classification in mining, building materials, transportation, energy, chemical products industries. So, it’s a kind of ideal equipment used in the crushing and screening unit. If the screen with small boring diameter is installed, the wet and sticky material can not be screened unless the water spraying method is used.

Circular Vibrating Screen’S  Highlights:

(1) It uses cylinder-type eccentric shaft and eccentric block to make strong vibrating force.

(2) Beam is connected to the main body with bolts, has the feature of high strength.

(3) The side plate of the screen box use the steel which make the boiler, the steel have high strength and strong impact-resistance.

(4) It adopts the structure of small amplitude, high frequency, large obliquity to make the screen with high efficiency, large handing capacity, long life span, low consumption, and little noise.

Circular Vibrating Screen’S Working principle:

The vibrating screen uses the motor to drive the eccentric shaft to make the screen body periodically along with the direction of vibration force. The materials make circular movement on the screen consists of vibration source, screen body, screen mesh, shock absorbing device, base frame etc. It has the features of reasonable structure and long durability.

 Circular Vibrating Screen’S specification:

Model Screen size (mm) No. of Layer Screen mesh (mm) Max. feed size (mm) Handling capacity (t/h) Motor power (kW) Vibrating frequency (r/min) Double swing (mm)
2YZS1237 3700×1200 2 3-80 100 10-80 11 750-950 5-9
3YZS1237 3700×1200 3 3-80 100 10-80 11 750-950 5-9
2YZS1548 4800×1500 2 3-80 100 30-200 15 750-950 5-9
3YZS1548 4800×1500 3 3-80 100 30-200 15 750-950 5-9
2YZS1848 4800×1800 2 3-80 100 50-250 18.5 750-950 5-9
3YZS1848 4800×1800 3 3-80 100 50-250 18.5 750-950 5-9
4YZS1848 4800×1800 4 3-80 100 50-250 18.5 750-950 5-9
2YZS1860 6000×1800 2 3-80 100 60-300 22 750-950 5-9
3YZS1860 6000×1800 3 3-80 100 60-300 22 750-950 5-9
4YZS1860 6000×1800 4 3-80 100 60-300 30 750-950 5-9
2YZS2160 6000×2100 2 3-80 100 80-400 22 700-900 5-9
3YZS2160 6000×2100 3 3-80 100 80-400 30 700-900 5-9
4YZS2160 6000×2100 4 3-80 100 80-400 30 700-900 5-9
2YZS2460 6000×2400 2 5-80 100 100-500 30 700-900 5-9
3YZS2460 6000×2400 3 5-80 100 100-500 37 700-900 5-9
4YZS2460 6000×2400 4 5-80 100 100-500 37 700-900 5-9
