2016 LUM series superfine vertical roller grinding mills

2016 LUM series superfine vertical roller grinding mills

Type: Mineral Ore Powder Making
Input Size: 15-20 mm
Processed Materials:
Limestone, calcite, barite, dolomite, potassium feldspar, bentonite, medical stone, rock phosphate, manganese ore, iron ore, quartz, active carbon, carbon black, ceramic, coal, etc..
Applications:
Superfine dry powder of none-metal ores such as calcite, marble, limestone, coarse whiting, talc, barite and dolomite and so on.

LUM series superfine vertical roller grinding mills can be widely used to process the superfine dry powder of non-metal ores such as calcite, marble, limestone, coarse whiting, talc, barite and dolomite and so on.

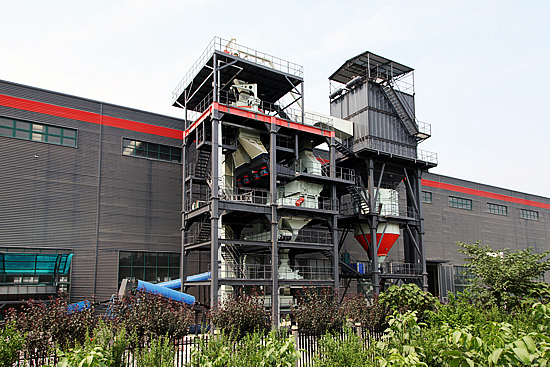

010

New technology LUM Series Superfine Vertical Roller Grinding Mill features:

1. High grinding efficiency, little pollution to the final products.
2. Advanced, efficient and energy-saving powder-concentrating technology.
3. Secure and efficient operating principles, intelligent operating system.
4. Little attrition.
5. Convenient and easy to maintenance.
6. Environmental friendly.

New technology LUM Series Superfine Vertical Roller Grinding Mill  wording principle:

he main motor drives the millstone to rotate through the reduction box, meanwhile, the air flow gets into the mill through air intake. The materials come out of the screw feeder and fall on the center of the millstone, and then they will move from the center to the edge of the millstone under the affect of centrifugal force. When they move across the grinding zone, they will get grinded by the rollers. Those materials in big pieces will be crushed and grinded directly while those small ones will get extruded and they will form a material bed in which intergranule and mutual grinding will take place. The grinded materials keep moving to the edge of the millstone until they are taken away by the air current at the air ring, and the big pieces will fall again on the millstone to be grinded. The materials in the air flow will go through the rotor vanes on the separator above. The coarse powder will go back to the millstone while the eligible powder will go out of the mill together with the air flow and get collected by the powder collector. Those collected powder is the final products of the LUM grinding mill. The sundries mixed in the materials that go into the mill, iron piece for instance, will move to the edge of the millstone with the materials and fall down to the bottom part of the mill since they can not be blown up because of their own weight. And then these sundries will be scraped to the slag-discharge opening and discharged out of the mill. The final products can be in different fineness through adjusting the rotating speed of the rotor of the powder concentrator. The pressure on the rollers can also be changed by adjusting the pressure of the hydraulic system so that the mills can process the materials in different hardness. Besides, the load and capacity of the mill can be affected through adjusting the materials’ feeding amount.

Technology Specifications

Model Specification Name LUM1125X LUM1232X LUM1436X
Intermediate diameter of the millstone (mm) 1100 1200 1400
Quantity of the rollers(piece) 3 3 3
Granularity of the feeding material D90(mm) < 10 Max. 15mm < 10 Max.15mm < 10 Max.20mm
Moisture of the feeding material < 3%
Capacity (t/h) 5~14 7~16 9~18
Fineness(mm) Generally in 0.045-0.02, the finest can reach 0.01.
Power of the main motor(KW) 250 315 355
Power of multiple powder concentrator & quantity 15KW×5 15KW×7 15KW×7
