As well known, traditional quarry mining multi-wire saws or blasting. Handheld small drilling rig as a major drilling equipment, drilling speed is very slow (especially speed drill deep attenuation is more obvious), resulting in a serious waste of resources. Backwardness of the traditional quarrying tools result in low extraction efficiency, environmental pollution, resource waste, and the foreign advanced equipment is expensive and daunting.

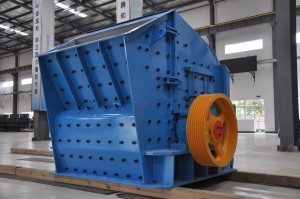

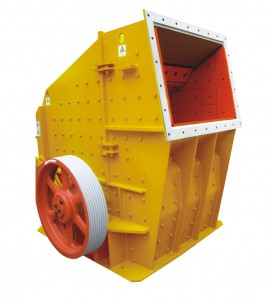

Based those reasons , Henan kefid Science & Technology Co., Ltd. absorb the current international impact crusher latest technology, research and developed the latest generation of broken products with international advanced level. Henan kefid Science & Technology Co., Ltd. to absorb the impact crusher in the current international latest technology, research and developed the latest generation of broken products with international advanced level. The rotor is the “heart” of the crusher, impact crusher acceptance of the most stringent parts, plays a vital role in the work. So kefid product rugged heavy-duty rotor, making it the rotor to obtain a higher moment of inertia, greatly improving the capacity and service life of the European type impact crusher broken. At present, the European type impact crusher has been widely used in metallurgy, mining, cement, chemicals, refractory and ceramics and other industrial sectors, it is very suitable for a variety of soft, medium hard ore coarse, medium and fine degree.
Impact crusher Model:
Model | Rotor size (mm) | Feed opening (mm) | Max. Feed size (mm) | capacity (t/h) | Power (kW) | weight (t) | Overall dimension (mm) |
PFW1210Ⅲ | Ф1150×960 | 570×990 | 250 | 70-120 | 110 | 15 | 2550×1870×2100 |
PFW1214Ⅲ | Ф1150×1400 | 570×1430 | 250 | 90-170 | 132 | 19 | 2550×2310×2100 |
PFW1315Ⅲ | Ф1300×1500 | 625×1530 | 300 | 180-270 | 160 | 25 | 2960×2570×2380 |
PFW1318Ⅲ | Ф1300×1800 | 625×1830 | 300 | 220-300 | 200 | 30 | 2960×2870×2380 |
PFW1415Ⅲ | Ф1400×1500 | 800×1530 | 350 | 280-350 | 200 | 33 | 3120x2650x2660 |
Table 2: for crusher with two crushing chambers
Model | Rotor size (mm) | Feed opening (mm) | Max. Feed size (mm) | capacity (t/h) | Power (kW) | weight (t) | Overall dimension (mm) |
PFW1210Ⅱ | Ф1150×960 | 1100×1030 | 400 | 90-160 | 110 | 17 | 2400x1870x2550 |
PFW1210Ⅱ | Ф1150×1400 | 1100×1430 | 500 | 130-200 | 132 | 22 | 2400x2310x2550 |
PFW1315Ⅱ | Ф1300×1500 | 1200×1530 | 600 | 180-320 | 160 | 29 | 2700x2570x2800 |
PFW1318Ⅱ | Ф1300×1800 | 1200×1830 | 700 | 240-400 | 200 | 34 | 27002870×2800 |
PFW1415Ⅱ | Ф1400×1500 | 1300×1530 | 700 | 300-480 | 200 | 38 | 2900x2700x3000 |
Notice: Any change of technical data shall not be advised additionally.
