PE150× 250 jaw crusher applied for iron ore beneficiation plant in Papua New Guinea

In generally speaking, Beneficiation process flowsheet design for up to three feed streams Process engineering with process guarantee Mechanical, structural and civil design for the process plant including feed hopper, trommel screen, tailings and concentrating stacking Preparation of equipment specifications for tender purposes Assistance with analysis of tenders received from third party equipment vendors Site inspection by structural.

Liming heavy industry designed the PE150× 250 jaw crusher play an important role in the iron mine beneficiation plant as the primary crushing machines. of course, we supply the whole set of iron mine beneficiation machines such as hydraulic cone crusher, ball mill, vibrating feeder and so on.

PE150× 250 jaw crusher applied for iron ore beneficiation plant in Papua New Guinea

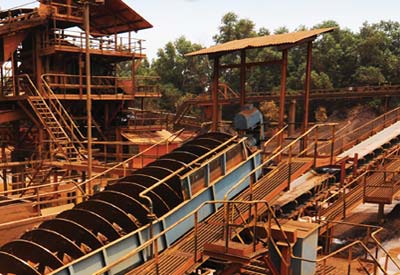

Liming heavy industry designed iron ore beneficiation plant flow chart:

1. Screening of raw ore through vibrating grizzely

2. +30mm size will be crushed by jaw crusher pe250x500

3. This material is again screened through D. D. Vibratory screen

4. -1mm will go to sump and +1mm will be fed to ball mill

5. Under flow from Hydro cyclone will be collected in sump and Pumped to cluster of Cyclones..

6. From Primary Spiral concentrate will go to Secondary spiral and rejects will go to tailing Pond.

8. From secondary spiral – rejects will go to tailing pond, concentrate is finished product, will go to stock yard and spiral middle will be re-fed to primary spiral.

8. Over flow of Hydro cyclone and cluster of cyclones will be collected in a sump and Pumped to.

After those iron ore beneficiation flow, you can get the suitable size iron ore minerals.

Any interested, leave me your email to our message box.
