Treatment of construction waste has become a major event related to people’s livelihood, is a 21st century city can not be ignored and the government face the urgent need to address the problem.Construction waste utilization problem has been higher concern in the community, local governments actively promote the construction waste grinding system of renewable building materials to use, national policy is also made of relevant policies and measures to prevent pollution of the environment of construction waste, the relevant ministries will construction waste resource utilization included in the “12th five-Year plan. In view of this, Henan kefid Technology Co., independent research and development of hydraulic system driven crawler vehicle chassis walking mobile crushing and screening equipment. It uses its own driver, advanced technology and complete functions, and in any terrain conditions, this equipment can reach anywhere in the workplace. As no assembly time, the equipment to a job site you can immediately work, saves time, work efficiency.
1. It adopts ship form steel structure . The volume is controlled reasonably. Hidden style traction frame is easy to be packed up . The turning radius is such small.
2. Feeding guard is lifted by hydraulic pressure, easy to be loaded and unloaded, conveniently and reliably to be fixed.
3. Feeding guard adopts hierarchical type with two layers structure which provides prerequisites for widening.
4. The vehicle control cabinet is equipped with high-tech LCD touch screen and PLC control system. LCD touch screen with man-machine dialogue function makes it possess the functions of key start, misuse tips and protection, electrical control operations, fault and safe tips. It is convenient, efficient and secure.
5. Grizzly bars of the feeder is capable to separate out the small-sized material as the wastes. By adopting the automatic separatory hatch door, materials in the wastes hopper would flow either with the side-opening belt conveyor, or with the main materials.
6. Height of belt conveyor is adjustable. It also can be twisted and folded.
7. Landing legs adopt hydraulic lift mode which is of convenient operation and reliable performance.
8. With overall streamlined body design and metallic paint spraying, this plant is the perfect combination of mechanics and aesthetics.

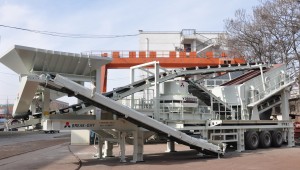

Mobile Primary Jaw Crusher
| Technical Data\Model | YG938E69 | YG1142E710 | YG1349E912 | YG1349EW86 | YG1349EW110 | |
| Transportation size(mm) | 11900×2550×3650 | 13500×2550×4300 | 15200×2950×4450 | 14600×2750×4350 | 15200×2800×4900 | |
| Weight(t) | 35 | 52 | 80 | 59 | 85 | |
| Tire Configuration | Dualaxial | Triaxial | Triaxial | Triaxial | Triaxial | |
| Jaw Crusher | PE600×900 | PE750×1060 | PE900×1200 | PEW860 | PEW1100 | |
| The Maximum Feeding Size(mm) | 480 | 630 | 750 | 730 | 940 | |
| Discharge Opening Size(mm) | 65~160 | 80~140 | 100~200 | 75~225 | 150~275 | |
| Capacity(t/h) | 90~180 | 110~320 | 220~450 | 150~500 | 300~650 | |
| Vibrating Feeder | GZD960×3800 | GZD1100×4200 | GZD1300×4900 | GZD1300×4900 | GZD1300×4900 | |
| Main Belt Conveyor | B800×8.5M | B1000×9M | B1200×9.5M | B1200×9.5M | B1200×9.5M | |
| Side Belt Conveyor (optional) | B450×3M | B500×3.5M | B650×4M | B650×4M | B650×4M | |
| Electric control | standard | control box + control panel | control box + control panel | control box + control panel | control box + control panel | control box + control panel |
| optional | Control box + LCD | Control box + LCD | Control box + LCD | Control box + LCD | Control box + LCD | |
| Hydraulic leg | standard | 4 | 4 | 4 | 4 | 4 |
| optional | 2 | 2 | 2 | 2 | 2 | |
| Hydraulic cylinder | standard | 4 | 4 | 4 | 4 | 4 |
| optional | 5 | 5 | 5 | 5 | 5 | |
| Genset (optional)(Kw) | 180 | 250 | 250 | 270 | 380 | |
| Iron Separator (optional) (Kw) | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-12 | RCYD(C)-12 | RCYD(C)-12 | |
Any change of technology data shall not be advised additionally.
